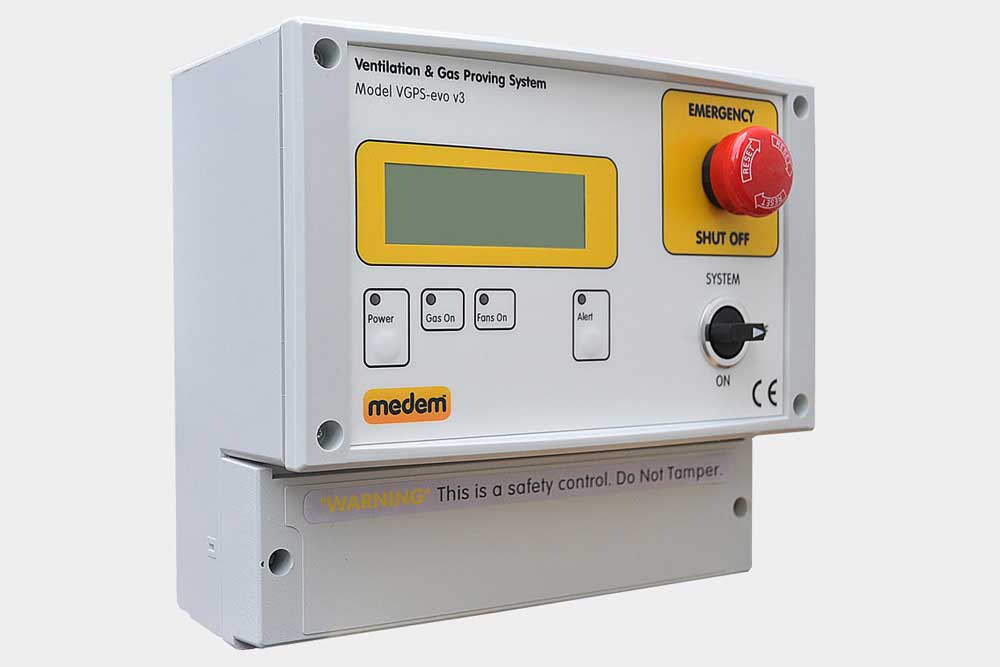

The VGPS-evo offers ventilation interlocking, gas pressure proving and environmental monitoring in a single panel for use within commercial kitchens helping them meet the requirements of BS 6173:2009 and IGEM/UP19.
Very easy to use, the LCD displays clear messages giving real information rather than just LED indications.
Medem gas detectors can be used to monitor the carbon dioxide level to ensure that HSE set levels are not exceeded.
Engineer functions can be used to aid in the setup of the system –displaying real-time inlet and outlet pressure at the gas valve (mbar) Valve lift button, it’s with functions like these that for example a ‘valve let by indication’ check be performed with ease.
| Product Dimensions | 212mm x 183mm x 97mm |
|---|---|
| Gas Detection | The panel can monitor up to 4 detectors. The current range is: Methane/Natural Gas (CH4), Propane (C3H8), Carbon Monoxide (CO) Carbon Dioxide (CO2) and Oxygen (O2) Depletion |
| Alarm Types | Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve. |
| Peak Alarms | Methane/Natural Gas (CH4) & Propane (C3H8) • 5% low alarm • 10% high alarmCarbon Monoxide (CO) • 20PPM Low Alarm • 30PPM High Alarm Carbon Dioxide (CO2) – Selectable |
| Warranty | Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of our products.
This applies to the main panel; gas detectors carry a two-year warranty. |
| Service | The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment. |
