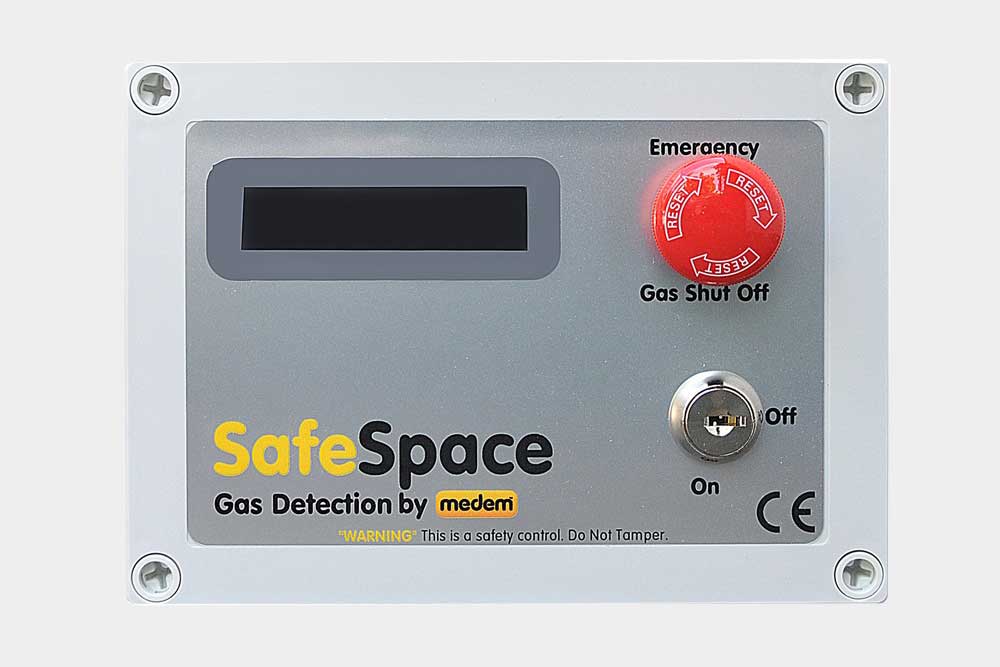

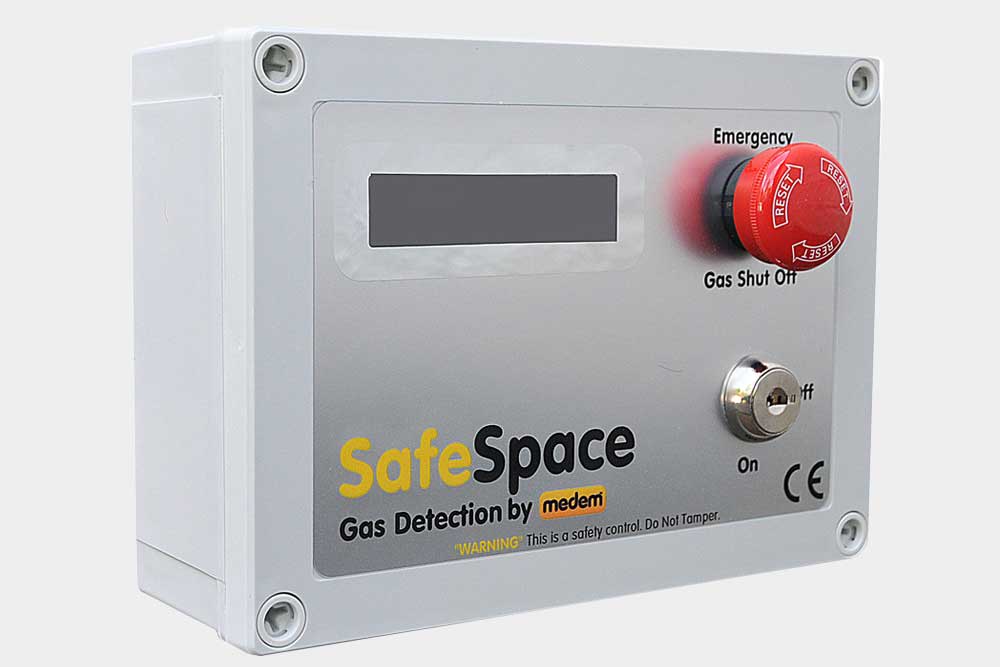

The SafeSpace V is a gas detection system which can monitor the atmosphere for CH4, LPG, CO, CO2 and Oxygen Depletion when fitted with the appropriate Medem detectors.
| Product Dimensions | 180mm x 130mm x 70mm |
|---|---|
| Gas Detection | The panel can except a maximum of four detectors. The current range is: Methane/Natural Gas (CH4), Propane (C3H8), Carbon Monoxide (CO) Carbon Dioxide (CO2) and Oxygen (O2) Depletion |
| Alarm Types | Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve. |
| Peak Alarms | Methane/Natural Gas (CH4) & Propane (C3H8) • 5% low alarm • 10% high alarmCarbon Monoxide (CO) • 20PPM Low Alarm • 30PPM High AlarmCarbon Dioxide (CO2) • 2800PPM Low Alarm • 5000PPM High AlarmCarbon Dioxide (CO2) – High Mode Selectable by Sensor • 5000PPM Low Alarm • 10000PPM High Alarm Oxygen (O2) Depletion |
| Warranty | Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of our products.
This applies to the main panel; gas detectors carry a two-year warranty. |
| Service | The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment. |
