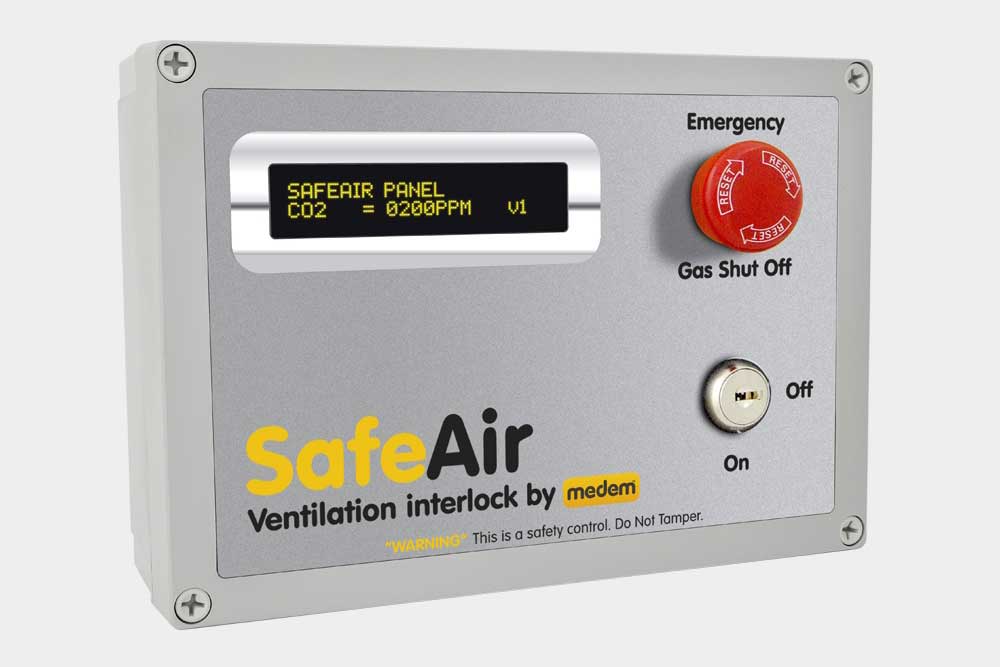

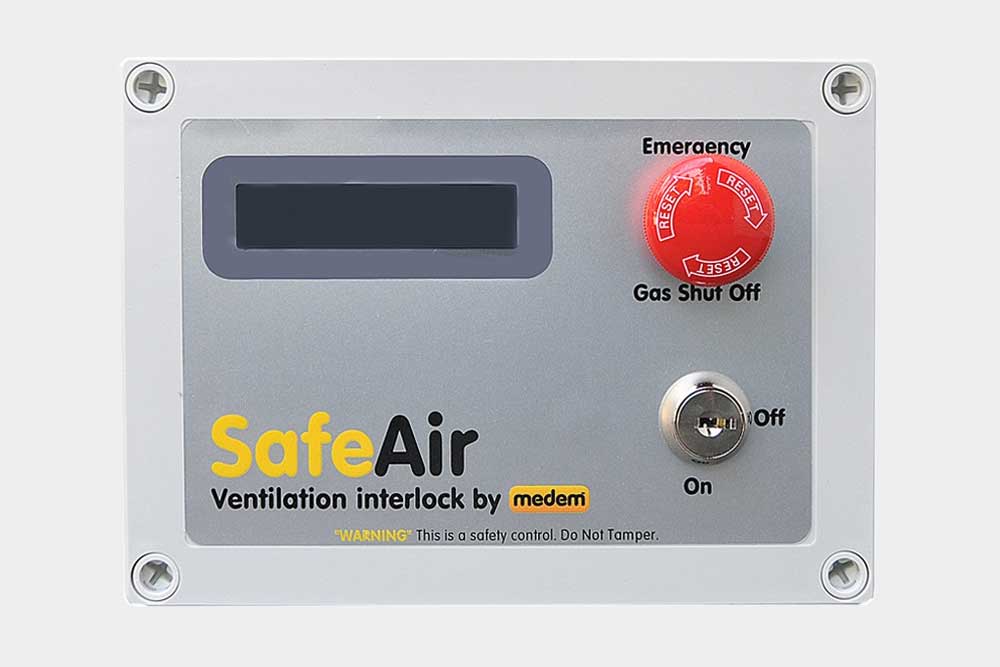

SafeAir (GP)


The SafeAir (GP) offers a simple cost-effective panel for ventilation interlocking and gas pressure proving in a commercial kitchen.

It is designed for use within commercial kitchens, to aid sites in meeting BS6173:2009 and IGEM/UP19. It can also monitor for air quality when fitted with the required detectors with carbon dioxide PPM levels displayed on the LCD.



Description

Gas proving must be fitted in any commercial kitchen which has appliances fitted without flame failure devices (FFD’s). Gas proving should be considered for the long-term benefit and safety of the site when considering other gas standards and that the majority of leaks identified are before the FFD’s.

The easy to use LCD provides clear messages giving real-time information rather than just LED indications.

It is a requirement that any mechanical ventilation within a kitchen environment (both supply and extract) is switched on and running before the use of any gas appliances can take place. With the SafeAir (GP), if the ventilation is not switched on, the LCD display informs the operator that the fans are off.

Technical Details

Product Dimensions 180mm x 130mm x 70mm
Gas Detection The panel can except a maximum of four detectors. The current range is:
Carbon Dioxide (CO2), Carbon Monoxide (CO), Methane/Natural Gas (CH4) & Propane (C3H8),
Alarm Types Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve.
Peak Alarms Carbon Dioxide (CO2)
• 2800PPM Low Alarm
• 5000PPM High AlarmMethane/Natural Gas (CH4) & Propane (C3H8)
• 5% low alarm
• 10% high alarmCarbon Monoxide (CO)
• 20PPM Low Alarm
• 30PPM High Alarm
Warranty Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of our products.

This applies to the main panel; gas detectors carry a two-year warranty.

Service The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment.

Downloads


File File size
pdf SafeAir GP v2.0 Instructions mp 846 KB
