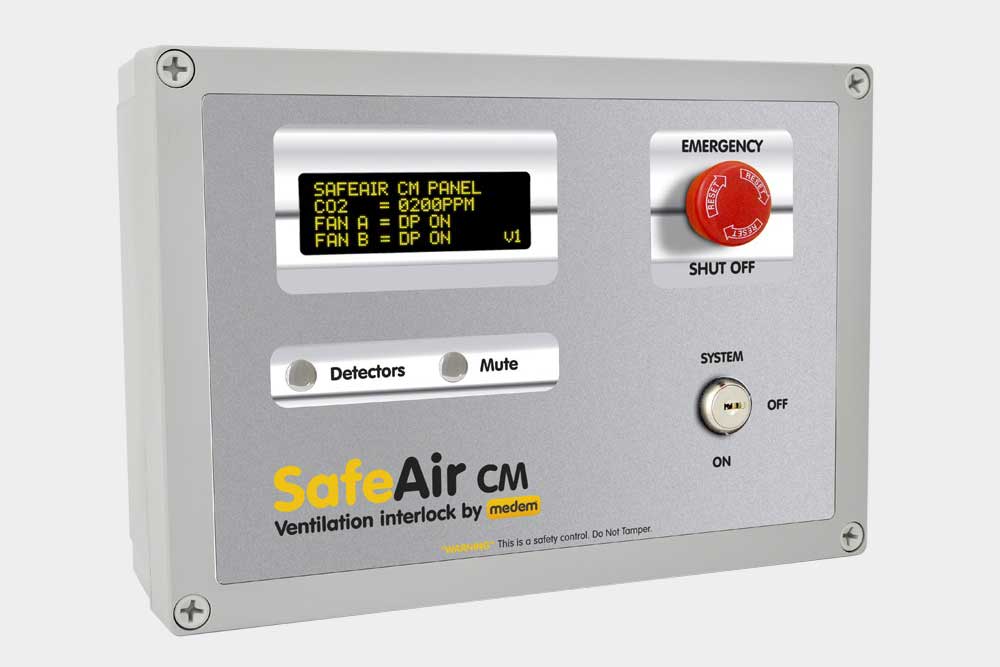

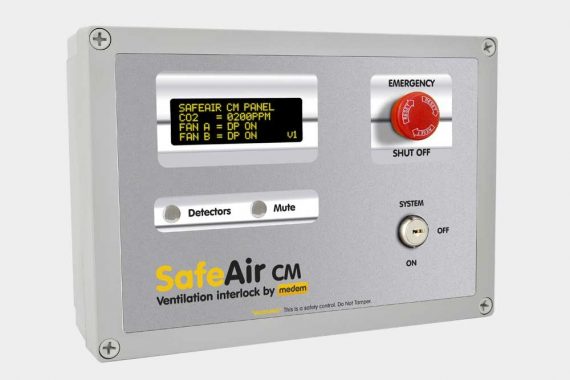

SafeAir CM (GP)


The SafeAir CM GP offers a simple single panel package for ventilation interlocking a commercial kitchen to aid sites in meeting BS6173:2009 and IGEM/UP19.



Description

It can also monitor for air quality when fitted with the required detectors with carbon dioxide PPM levels displayed on the LCD.

It features gas pressure proving and built-in two-channel current monitor designed for use within commercial kitchens, set up with a simple button press.

Gas proving must be fitted in any commercial kitchen which has appliances fitted without flame failure devices (FFD’s). Gas proving should be considered for the long term benefit and safety of the site when considering other gas standards and that the majority of leaks identified are before the FFD’s.

The easy to use OLED provides clear messages giving real-time information rather than just LED indications.

Fan load sensitivity range on each fan is 30 milliamps to 20 amps (max).

Technical Details

Product Dimensions 180mm x 130mm x 70mm
Gas Detection The panel can except a maximum of four detectors. The current range is:
Carbon Dioxide (CO2), Carbon Monoxide (CO), Methane/Natural Gas (CH4) & Propane (C3H8)
Alarm Types Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve.
Peak Alarms Carbon Dioxide (CO2)
• 2800PPM Low Alarm
• 5000PPM High AlarmMethane/Natural Gas (CH4) & Propane (C3H8)
• 5% low alarm
• 10% high alarm

Carbon Monoxide (CO)
• 20PPM Low Alarm
• 30PPM High Alarm

Warranty Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of our products.

This applies to the main panel; gas detectors carry a two-year warranty.

Service The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment.

Downloads


File File size
pdf SafeAirCM GP v2.0 Instructions mp 840 KB
