SafeAir CM - Modern Plant Gas Safety Systems

Description

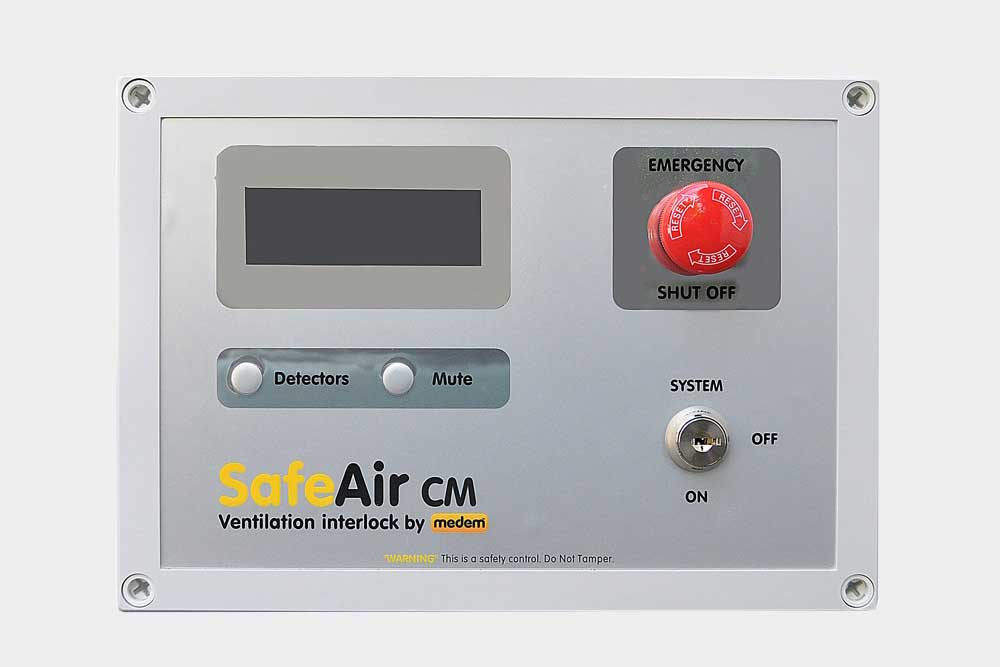

The SafeAir CM offers a simple single panel package for ventilation interlocking a commercial kitchen to aid sites in meeting BS6173:2009 and IGEM/UP19.

It can also monitor for air quality when fitted with the required detectors with carbon dioxide PPM levels displayed on the LCD.

It features built-in two-channel current monitor designed for use within commercial kitchens, set up with a simple button press.

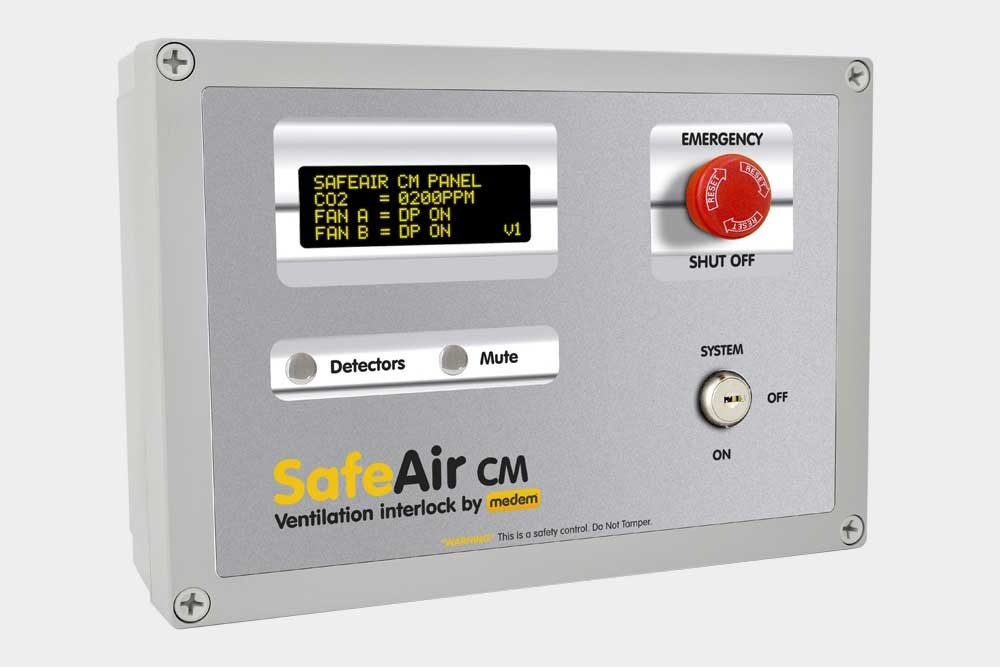

The easy to use OLED provides clear messages giving real-time information rather than just LED indications.

Fan load sensitivity range on each fan is 30 milliamps to 20 amps (max).

Technical Details

Product Dimensions	255mm x 180mm x 70mm
Gas Detection	The panel can except a maximum of four detectors. The current range is: Carbon Dioxide (CO2), Carbon Monoxide (CO), Methane/Natural Gas (CH4) & Propane (C3H8)
Alarm Types	Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve.
Peak Alarms	Carbon Dioxide (CO2) • 2800PPM Low Alarm • 5000PPM High AlarmMethane/Natural Gas (CH4) & Propane (C3H8) • 5% low alarm • 10% high alarmCarbon Monoxide (CO) • 20PPM Low Alarm • 30PPM High Alarm
Warranty	Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of our products. This applies to the main panel; gas detectors carry a two-year warranty.
Service	The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment.

Downloads

File	File size
SafeAirCM v2.0 Instructions mp	2 MB
