SafeAir - Modern Plant Gas Safety Systems

Description

It is designed for use within commercial kitchens, to aid sites in meeting BS6173:2009 and IGEM/UP19. It can also monitor for air quality when fitted with the required detectors with carbon dioxide PPM levels displayed on the LCD.

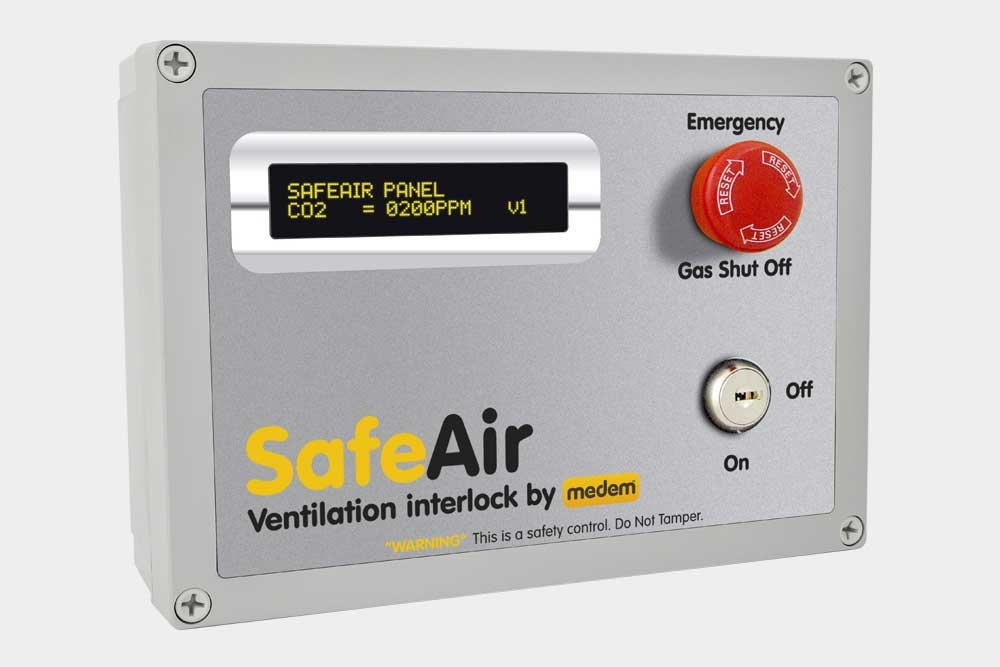

The easy to use LCD provides clear messages giving real-time information rather than just LED indications.

It is a requirement that any mechanical ventilation within a kitchen environment (both supply and extract) is switched on and running before the use of any gas appliances can take place. With the SafeAir if the ventilation is not switched on, the LCD display informs the operator that the fans are off.

For the interlocking of the ventilation, our current monitoring units (CM2M-K or CM2L-K) or pressure differential switches can be used.

Technical Details

Product Dimensions	180mm x 130mm x 70mm
Gas Detection	The panel can except a maximum of four detectors. The current range is: Carbon Dioxide (CO2), Carbon Monoxide (CO), Methane/Natural Gas (CH4) & Propane (C3H8),
Alarm Types	Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve.
Peak Alarms	Carbon Dioxide (CO2) • 2800PPM Low Alarm • 5000PPM High AlarmMethane/Natural Gas (CH4) & Propane (C3H8) • 5% low alarm • 10% high alarm Carbon Monoxide (CO) • 20PPM Low Alarm • 30PPM High Alarm
Warranty	Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of our products. This applies to the main panel; gas detectors carry a two-year warranty.
Service	The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment.

Downloads

File	File size
SafeAir v2.0 Instructions mp	1 MB
