Description
Flexibility

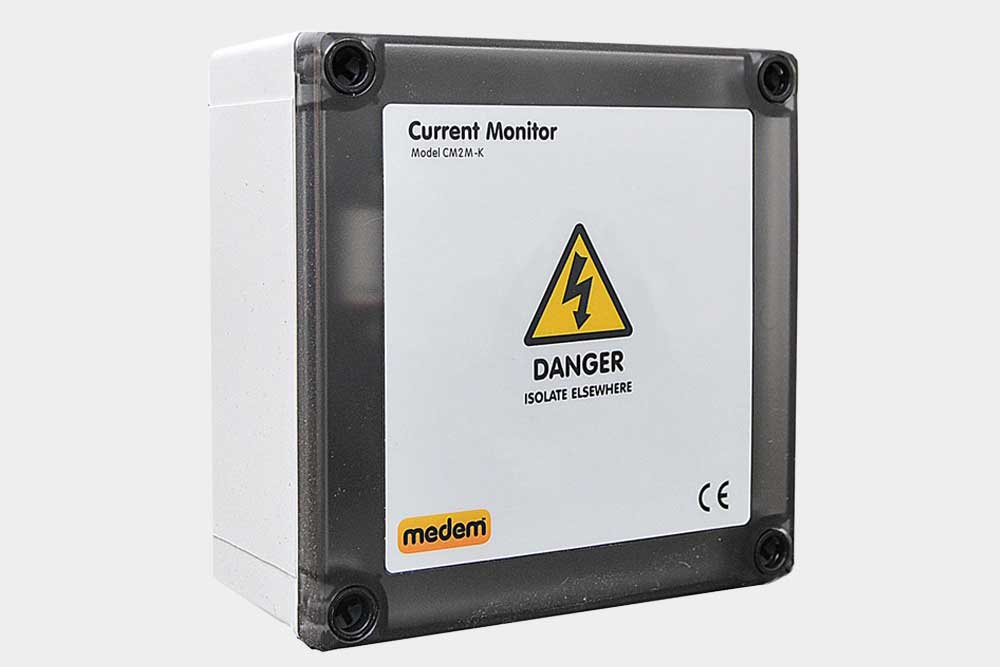

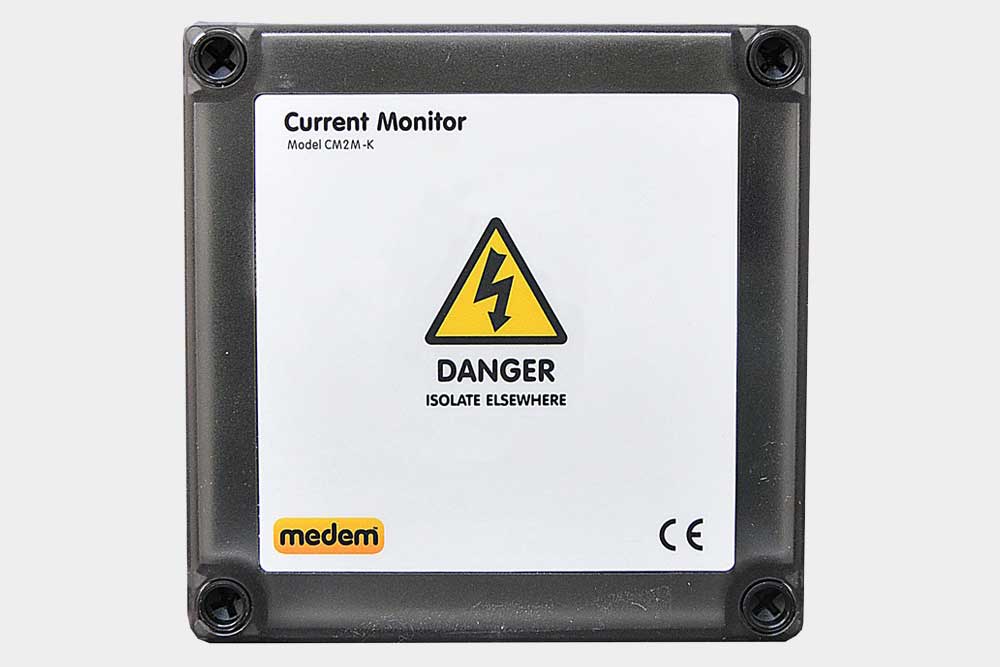

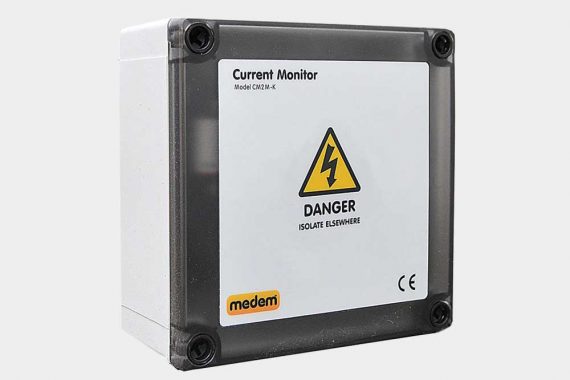

Each CM2M-K can be used to interlock 2 fans, the fans are connected by taking the live feed for each fan through the current monitor (before any speed controllers/inverters).
Fan load sensitivity range on each fan is 30 milliamps to 24 amps (max).
Features and Details:
There are 3 LED indications:
- 1x Green, for the 12-volt power to the CM2M-K.
- 2x Red, one for ‘Fan A’ and another for ‘Fan B’ load detection.
When the fans are switched on and the load is detected (installation instructions) the corresponding side’s NO/NC contact will close and the red LED will light, this will flash for the first 15 minutes after current detection and then become solid. The flashing LED helps us to identify a fan intermittently stalling.
