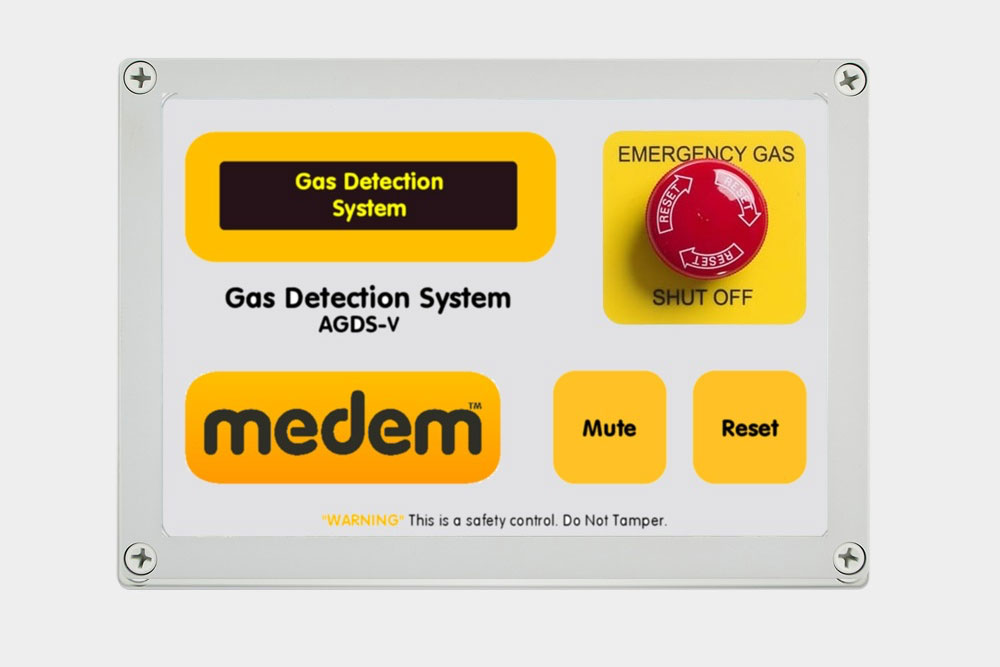

The AGDS-V is a four channel gas detection system designed for use in boiler houses, plant rooms and areas with a risk of gas escape or build up.
In the event of a high alarm from one of the sensors, the AGDS-V will isolate/close any connected solenoid valve.
A low alarm indication is given on the control panel including ‘Mute’, ‘Reset’ and Emergency Stop buttons. Remote emergency stop buttons and thermal links can be monitored and there is also a fire alarm input which will close the gas valve when activated. There are two change over mains rated relays which can be used to activate a beacon/sounder, a fan or signal to a BMS system.
| Product Dimensions | 180mm x 130mm x 70mm |
|---|---|
| Gas Detection | The panel can except a maximum of four detectors. The current range is: Methane/Natural Gas (CH4), Propane (C3H8), Carbon Monoxide (CO) Carbon Dioxide (CO2) and Oxygen (O2) Depletion |
| Alarm Types | Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve. |
| Peak Alarms | Methane/Natural Gas (CH4) & Propane (C3H8) • 5% low alarm • 10% high alarmCarbon Monoxide (CO) • 20PPM Low Alarm • 30PPM High Alarm Carbon Dioxide (CO2) – Carbon Dioxide (CO2) – High Mode Selectable by Sensor Oxygen (O2) Depletion |
| Warranty | Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of our products.
This applies to the main panel; gas detectors carry a two-year warranty. |
| Service | The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment. |
