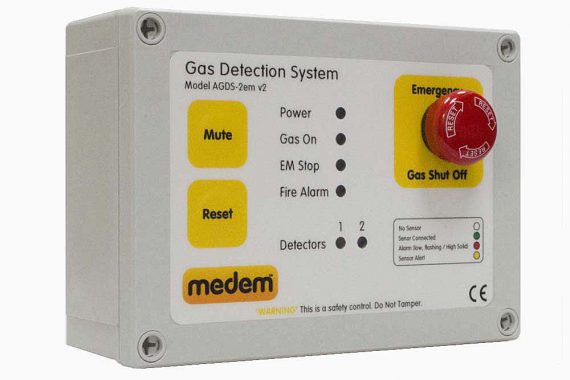

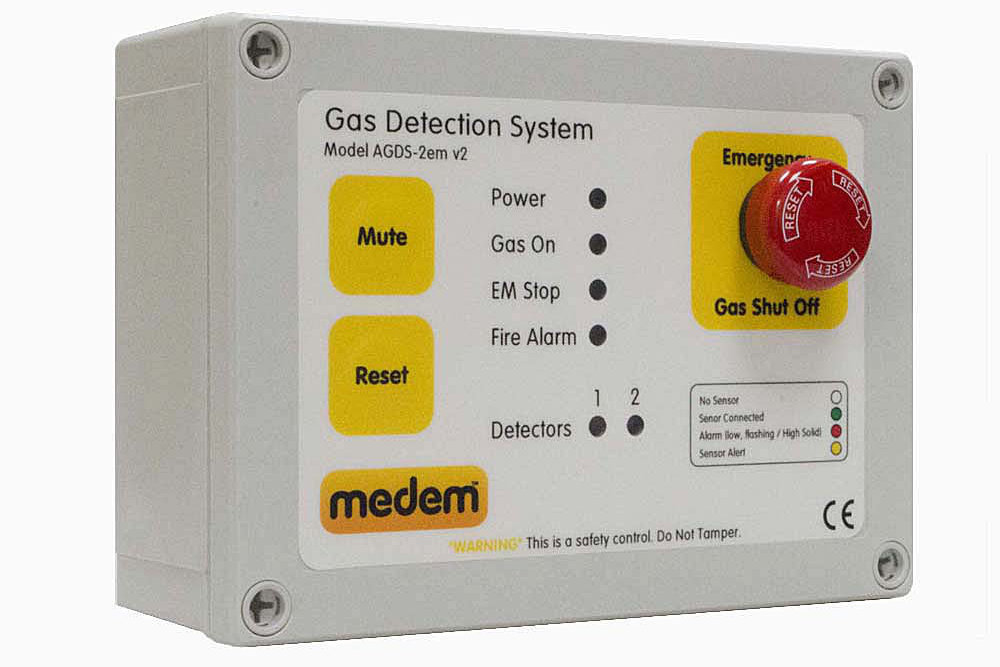

The AGDS-2em V2 is a single or two-channel gas detection system with valve isolation. Up to 2 low voltage sensors can be connected for the detection of natural gas, LPG or carbon monoxide.

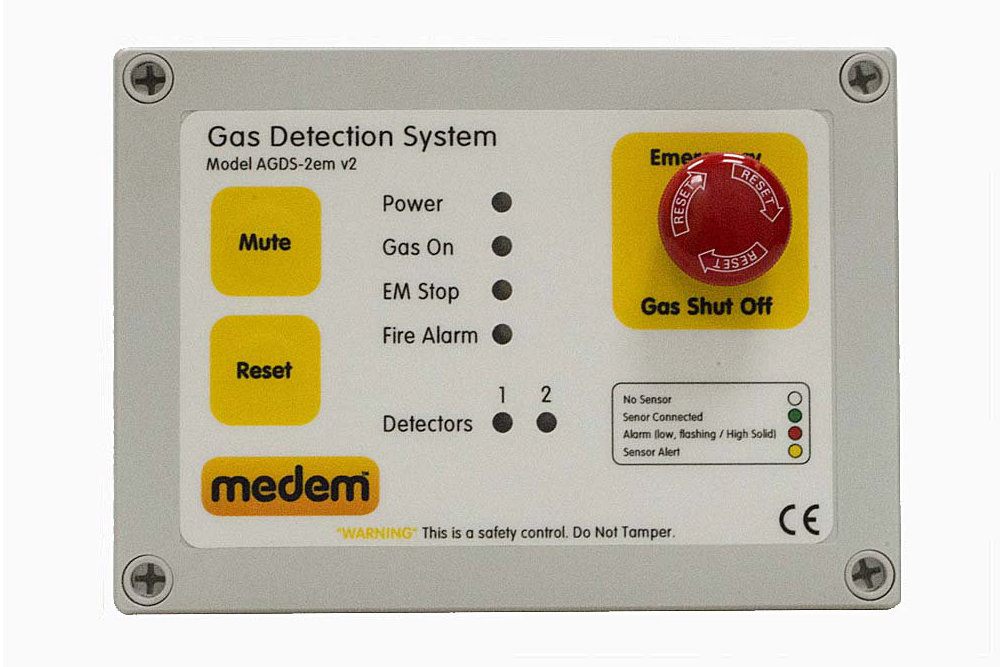

Panel controls include an ‘Emergency Stop’, ‘Mute’ and ‘Reset’ buttons.
In the event of a high alarm from one of the sensors, the system will isolate a connected control valve. A low alarm indication is also given. Separate terminals and LED’s for ‘EM Stop’ and ‘Fire Alarm’ circuits provide clearer indication when activated.Settable change over mains rated relay can be used to activate a beacon/sounder, remote indication or signal to a BMS system.
| Product Dimensions | 180mm x 130mm x 70mm |
|---|---|
| Gas Detection | The panel can except a maximum of two detectors. The current range is: Methane/Natural Gas (CH4), Propane (C3H8), Carbon Monoxide (CO) |
| Alarm Types | Fixed low and high alarm peak levels, high alarm activation will latch and isolate the connected gas valve. |
| Peak Alarms | Methane/Natural Gas (CH4) & Propane (C3H8) • 5% low alarm • 10% high alarm arbon Monoxide (CO) • 80PPM Low Alarm • 100PPM High Alarm |
| Warranty | Medem’s industry leading five-year warranty is a demonstration of the company’s confidence in the quality and design of our products.
This applies to the main panels and sender units, gas detectors carry a two-year warranty. |
| Service | The panel and sensors must be re-commissioned and tested every 12 months as a minimum but with consideration of every 6 months dependant on gas type and environment. |
